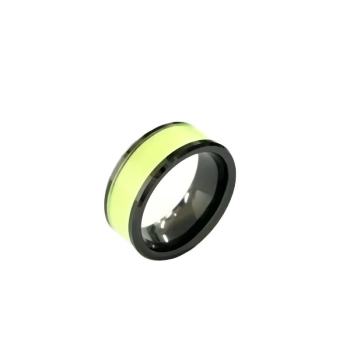

HF Ceramic Material 13.56MHz Chip RFID Smart NFC Ring
- group name
- NFC payment ring (ceramic)
- Min Order
- 1000 piece
- brand name
- DC-NFC Tag Manufacturer
- Nearest port for product export
- Yantian Port
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T
- update time
- Sat, 05 Apr 2025 03:07:00 GMT
Paramtents
category NFC payment ring (ceramic)
support DC-NFC tag manufacturer
standard 14443a
chip NTAG213
frequency 13.56MHZ
temperature resistance 200 degrees /2 hours, 260 degrees 10-30 seconds
operating temperature Minus 30 to 85 degrees
reading distance About 1-10mm
Authentication ROSH ,REACH CE
Packging & Delivery
-
Min Order1000 piece
Briefing
HF Ceramic Material 13.56MHz Chip RFID Smart NFC Ring
Detailed
NFC payment ring (ceramic) Description
High Quality NFC payment ring (ceramic)
● Application industry:Library management, factory automation NFC, laundry NFC/RFID tags, chip consumables and accessory identification
●Characteristic：
NFC payment ring (ceramic) High temperature resistant NFC,NTAG 213 chipNFC payment ring (ceramic) Specification
|
Features
|
Contactless transmission of data and supply energy
|
||
|
Operating frequency
|
13.56 MHz
|
||
|
Data transfer
|
106 kbit/s
|
||
|
Data integrity
|
16-bit CRC, parity, bit coding, bit counting
|
||
7-byte serial number (cascade level 2 according to ISO/IEC 14443-3).UID ASCII mirror for automatic serialization of NDEF messages..Automatic NFC counter triggered at a reading command.NFC counter ASCII mirror for automatic adding the NFC counter value to the NDEF message.ECC-based originality signatureFast read commandTrue anti-collision | |||
180, 540 or 924 bytes organized in 45, 135 or 231 pages with 4 bytes per page. 144, 504 or 888 bytes freely available user Read/Write area (36, 126 or 222 pages). 4 bytes initialized capability container with one-time programmable access bits. Field programmable read-only locking function per page for the first 16 pages. Field programmable read-only locking function above the first 16 pages per double page for NTAG 213 or per 16 pages for NTAG 215 and NTAG 216. Configurable password protection with an optional limit of unsuccessful attempts. Anti-tearing support for capability container (CC) and lock bits. ECC supported originality check. Data retention time of 10 years. Write endurance 100,000 cycles. | |||
NFC payment ring (ceramic) Applications
NFC payment ring (ceramic) FAQ
1. How can I get the NFC payment ring (ceramic) Description Small price?
Please Send your inquiry Details or add our online tool then we can provide you with a quotation for the first time.
2. Can you offer free samples?
Yes, usually we can offer you free samples
A: For stock samples, we can send you free samples for your test, you pay for the shipping cost.
B: For customized samples, we will charge the reasonable production cost and try to refund you after order confirmed
3. What is your lead time?
Usually, our lead time is 1-7 days for samples and 7-20 days for mass production.
4. What's your payment method ?
Our payment method are T/T, Ali Trade Assurance for mass production order; Paypal.
5. How can I Choose the chip?
Check above chips lists or just email with us of the application, we will give the best suggestions.
