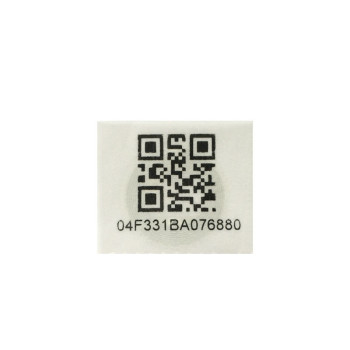

13.56MHz PET RFID Sticker Smart Tag ISO15693 Chip Printable QR Code NFC Paper Label
- group name
- PI/PET RFID NFC Stickers Tags
- Min Order
- 1000 piece
- brand name
- DC-NFC Tag Manufacturer
- model
- NFC paper label
- Nearest port for product export
- Yantian Port
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T
- update time
- Thu, 21 Nov 2024 19:55:00 GMT
Paramtents
category NFC paper label
support DC-NFC tag manufacturer
size 30*35mm
Printing Option CMYK offset printing/ Silk screen printing/ Digita
standard 14443A / ISO 15693
chip Customizable
frequency 13.56MHZ
operating temperature Minus 40 to 70 degrees
reading distance About 25-50mm
Packging & Delivery
- 10cm x10cm x5cm
-
Min Order1000 piece
Briefing
RFID electronic tags can be customized printed two-dimensional code NFC paper labels
Detailed
30*35MM NFC paper label Description
High Quality 30*35MM NFC paper label
● Application industry:Access control, parking, elevator, etc.
●characteristic：
| NTAG 213 chip, 30*35mm NFC paper label，high-temperature resistant NFC |
30*35MM NFC paper label
Specification
Specification
|
Features
|
Contactless transmission of data and supply energy
|
||
|
Operating frequency
|
13.56 MHz
|
||
|
Data transfer
|
106 kbit/s
|
||
|
Data integrity
|
16-bit CRC, parity, bit coding, bit counting
|
||
7-byte serial number (cascade level 2 according to ISO/IEC 14443-3).UID ASCII mirror for automatic serialization of NDEF messages..Automatic NFC counter triggered at a reading command.NFC counter ASCII mirror for automatic adding the NFC counter value to the NDEF message.ECC-based originality signatureFast read commandTrue anti-collision | |||
180, 540 or 924 bytes organized in 45, 135 or 231 pages with 4 bytes per page. 144, 504 or 888 bytes freely available user Read/Write area (36, 126 or 222 pages). 4 bytes initialized capability container with one-time programmable access bits. Field programmable read-only locking function per page for the first 16 pages. Field programmable read-only locking function above the first 16 pages per double page for NTAG 213 or per 16 pages for NTAG 215 and NTAG 216. Configurable password protection with an optional limit of unsuccessful attempts. Anti-tearing support for capability container (CC) and lock bits. ECC supported originality check. Data retention time of 10 years. Write endurance 100,000 cycles. | |||
30*35MM NFC paper label
Applications
Applications
30*35MM NFC paper label FAQ
1. How can I get the 30*35Mm NFC paper label Description Small price?
Please Send your inquiry Details or add our online tool then we can provide you with a quotation for the first time.
2. Can you offer free samples?
Yes, usually we can offer you free samples
A: For stock samples, we can send you free samples for your test, you pay for the shipping cost.
B: For customized samples, we will charge the reasonable production cost and try to refund you after order confirmed
3. What is your lead time?
Usually, our lead time is 1-7 days for samples and 7-20 days for mass production.
4. What's your payment method ?
Our payment method are T/T, Ali Trade Assurance for mass production order; Paypal.
5. How can I Choose the chip?
Check above chips lists or just email with us of the application, we will give the best suggestions.
