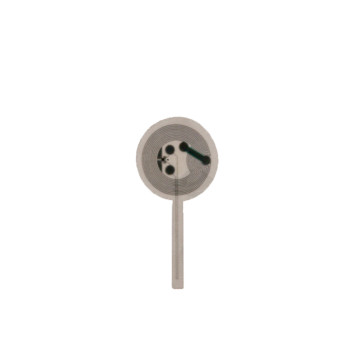

RFID 13.56MHz Security Smart Tag N213 TT Chip NFC Fragile Anti-transfer Electronic Label

group name: PI/PET RFID NFC Stickers Tags

Min Order: 1000 piece

brand name: DC-NFC Tag Manufacturer

model: NFC Fragile Anti-transfer Label

Nearest port for product export: Yantian Port

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T

update time: Thu, 21 Nov 2024 15:08:29 GMT

contact supplier

Paramtents

category NFC Fragile Anti-transfer Label
support DC-NFC tag manufacturer
size 24*49mm
thickness 0.2mm
standard 14443A
chip 213TT
frequency 13.56MHZ
operating temperature Minus 40 to 70 degrees
reading distance About 1-10mm

Packging & Delivery

10cm x10cm x5cm
Min Order1000 piece

Briefing

213TT chip high frequency fragile anti-transfer anti-counterfeiting label

Detailed

24*49MM NFC Fragile Anti-transfer Label Description

High Quality 24*49MM NFC Fragile Anti-transfer Label

● Application industry:cosmetics / jewelry/Wine anti-counterfeiting, asset management

●characteristic：213TT chip，24*49MM NFC Fragile Anti-transfer Label，high-temperature resistant NFC

24*49MM NFC Fragile Anti-transfer Label Specification

Features	Contactless transmission of data and supply energy
Operating frequency	13.56 MHz
Data transfer	106 kbit/s
Data integrity	16-bit CRC,Parity check, bit coding, bit counting
7 byte serial number (according to ISO/IEC 14443-3 cascade 2)UID ASCII image for automatically serializing NDEF messages The NFC counter is triggered automatically when a read command is received An ASCII image of an NFC counter automatically adds an NFC counter value to an NDEF message The label tamper proof function can detect whether the label tamper line is opened after startup ASCII image of a label tamper proof message that copies the customized label tamper proof information to an NDEF message when a tamper event is detected Based on the original signature of ECC, it can provide customization and permanent locking function Quick read command True anti-interference 50 pF Input capacitor
184 bytes, organized into 46 pages of 4 bytes each 144 bytes User free read/write area (36 pages) 4-byte initialization function container with one-time programming access bits The first 16 pages feature a field-programmable read-only lock on each page Every two pages after the first 16 pages have field programmable read-only lockout Password protection can be configured, and the limit of failed attempts is optional Function container (CC) and lock bits support anti-modification function Preset original signature based on ECC, can provide customization and permanent locking function Tag tamper-proof message Data is retained for 10 years Write operation tolerance is 100.000 cycles

24*49MM NFC Fragile Anti-transfer Label
Applications

24*49MM NFC Fragile Anti-transfer Label FAQ

1. How can I get the 24*49Mm NFC Fragile Anti-transfer Label Description Small price?

Please Send your inquiry Details or add our online tool then we can provide you with a quotation for the first time.

2. Can you offer free samples?

Yes, usually we can offer you free samples

A: For stock samples, we can send you free samples for your test, you pay for the shipping cost.

B: For customized samples, we will charge the reasonable production cost and try to refund you after order confirmed

3. What is your lead time?

Usually, our lead time is 1-7 days for samples and 7-20 days for mass production.

4. What's your payment method ?

Our payment method are T/T, Ali Trade Assurance for mass production order; Paypal.

5. How can I Choose the chip?

Check above chips lists or just email with us of the application, we will give the best suggestions.
